Catch machinery failures before and wherever they happen with Acoem Eagle; an easily deployable, wireless sensor system designed for the toughest environments. The system helps bring remote, hard-to-reach, and hazardous assets’ health to your fingertips while monitoring vibration (triaxial) and temperature, with analytics performed in NEST i4.0.
Remote monitoring for hazardous and hard-to-reach assets: The Eagle system brings your most remote, hard-to-reach and hazardous assets’ health to your fingertips without needing ladders or permits.
Early fault detection using wireless triaxial sensing: Wireless, triaxial sensors with piezoelectric technology offer extensive monitoring range for early fault detection and can be combined with a handheld data collector and continuous monitoring system for comprehensive plant coverage in NEST i4.0.
Patented AI solution that provides immediate, easy-to-understand machine diagnostics.
Tri-axial and piezoelectric sensor with simultaneous triaxial vibration + temperature.
Range of over 2,000 ft. with 100+ sensors per gateway and a battery life up to 5 years (replaceable).
Monitor machines turning as low as 100 rpm. Intrinsically Safe. Class 1 Div 1 (ATEX Zone 0).

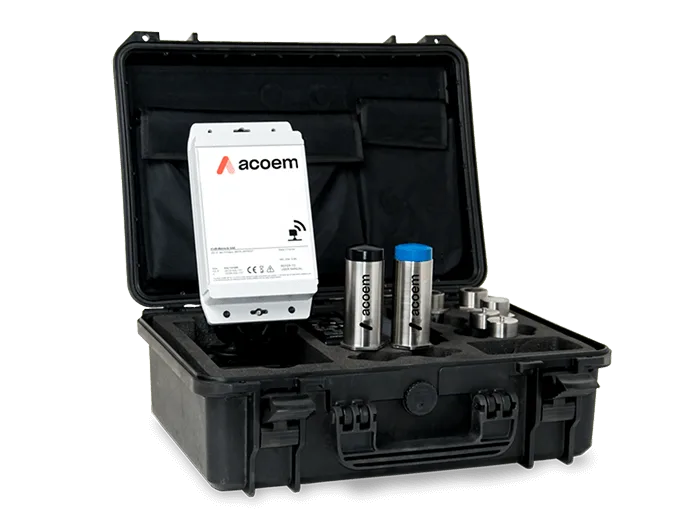

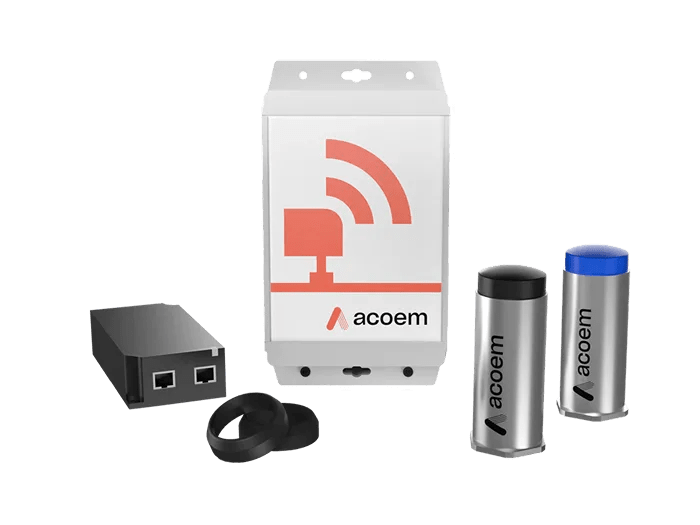

NEST i4.0 Network software for 1 user with Eagle driver and Accurex activation
(4) Eagle tri-axial sensors

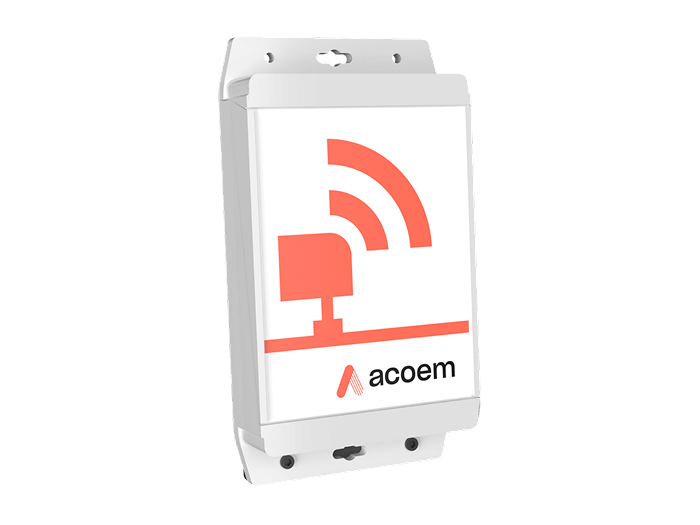

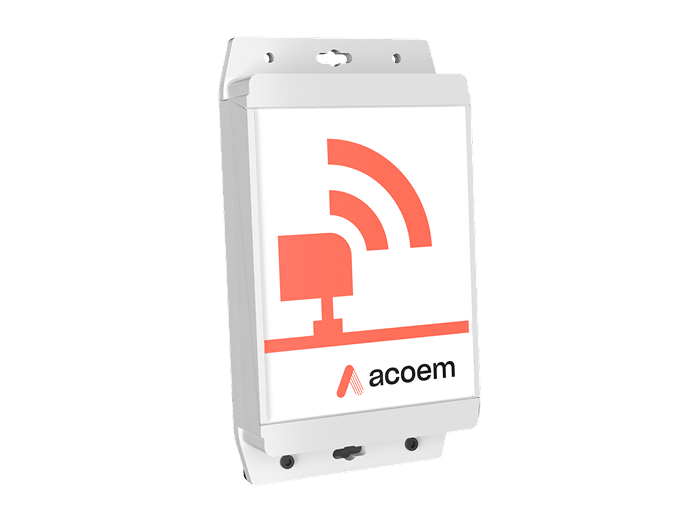

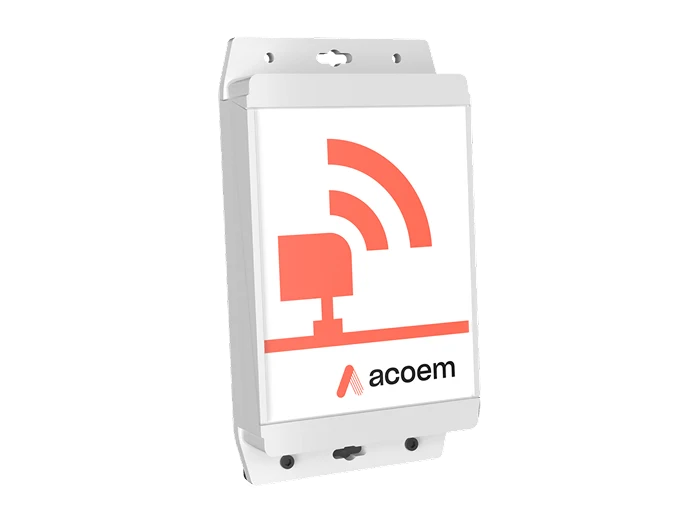

Gateway with embedded antenna
POE Power Supply
Tough ball-joint mount
Eagle Expander
